Tour

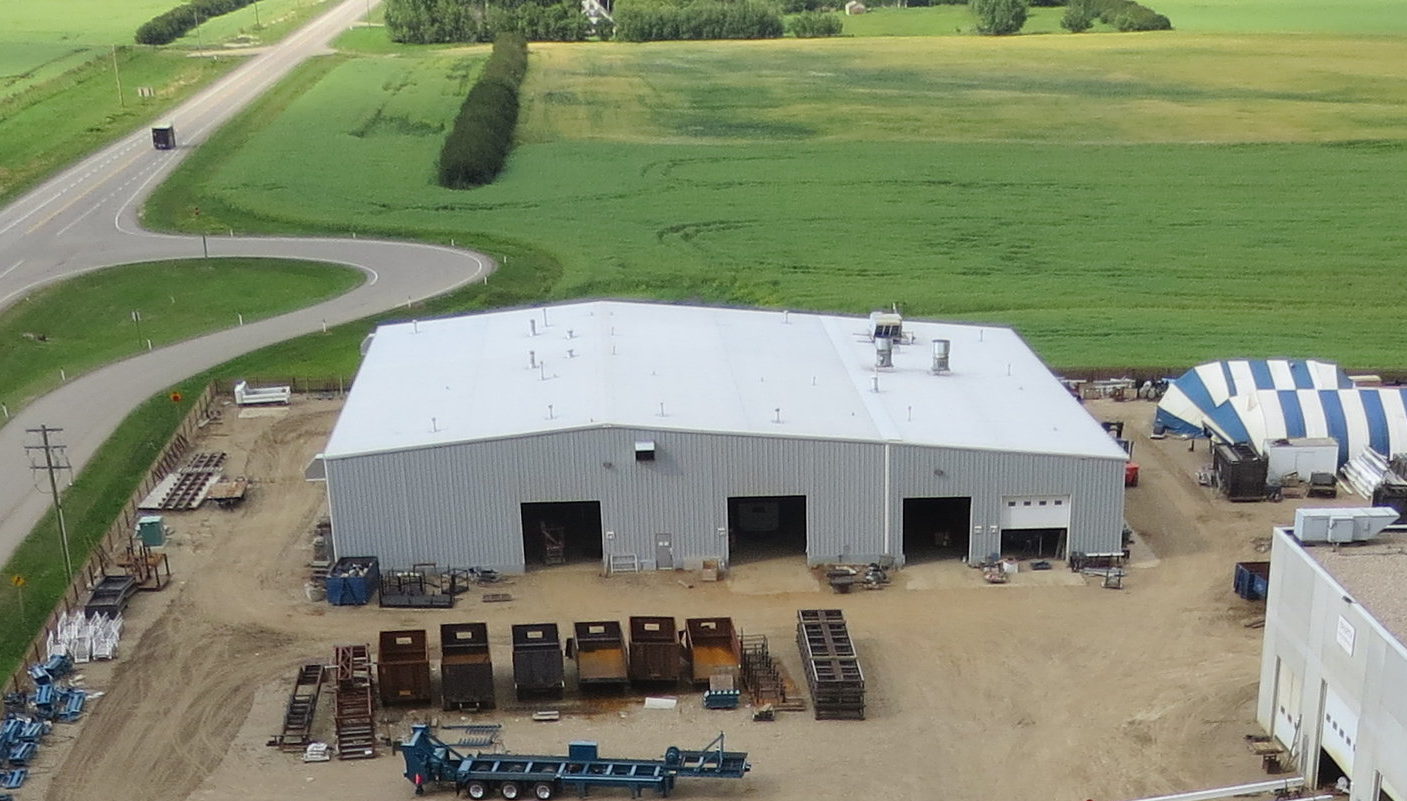

CBI Manufacturing is Located on 6 acres of Land With 70,000 Square Feet of manufacturing floor Space.





SCROLL DOWN

Tour




CBI Manufacturing is Located on 6 acres of Land With 70,000 Square Feet of manufacturing floor Space.

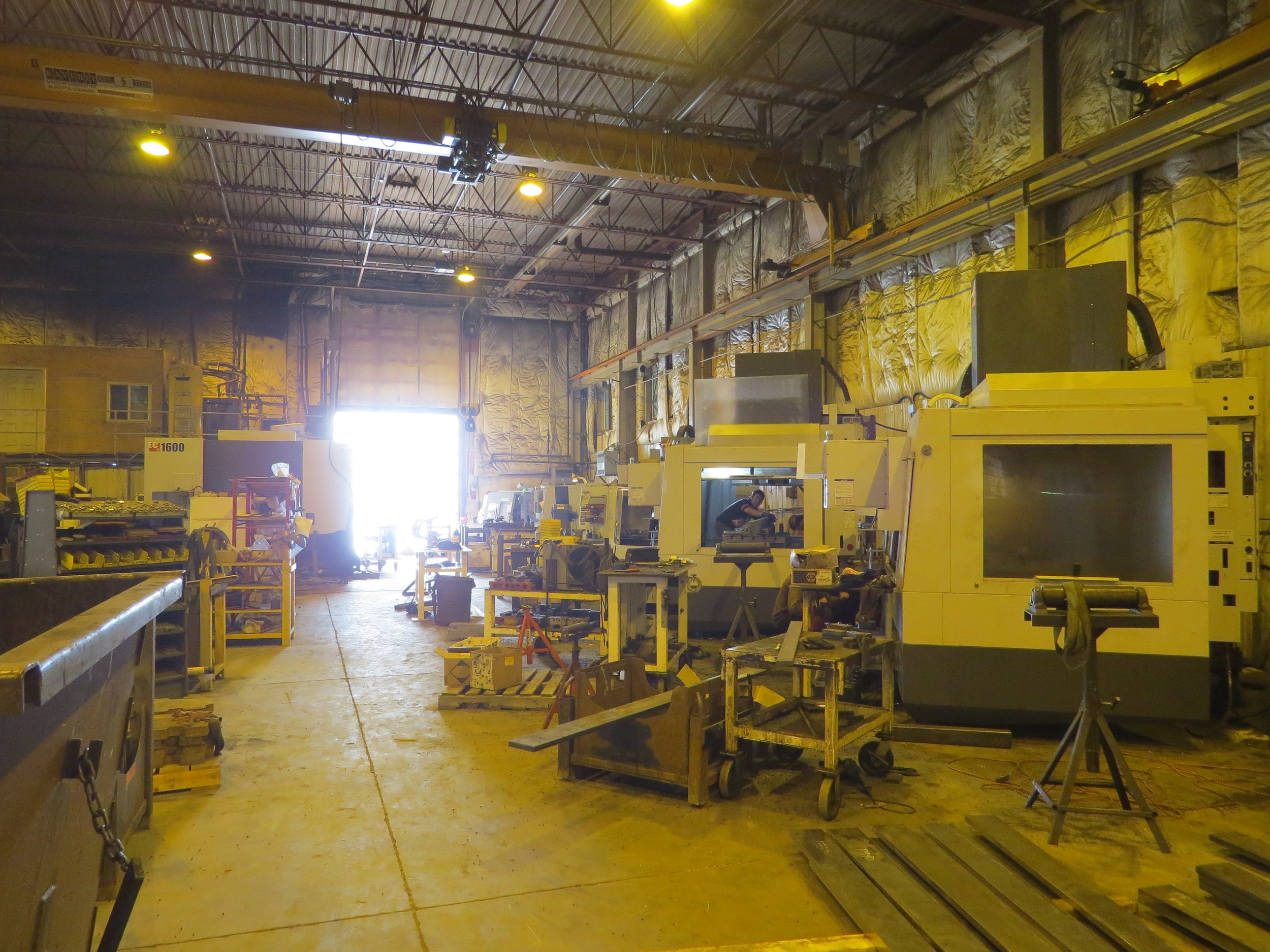

Machine Shop




Machine Shop



Machine Shop




Machine Shop



Machine Shop

1 - Mazak 450 MY Lathe

  • 7.2" Spindle Bore
  • 2m Chuck to Tailstock
  • 25.5" Max Turning

1 - EC 1600 Haas Mill Horizontal Machining Center

  • 30 HP
  • 4th Access Rotary

1 - Haas SL 30 Big Bore Lathe

1 - Haas ST 30 Lathe with live tooling

1 - Haas VF4 Vertical milling machines with 4th axis

2 - Haas VF6 vertical milling machines with 4th axis

1 – M20A HydMech Horizontal band saw

1 – S20A HydMech horizontal band saw

Prep Shop




Prep Shop



Prep Shop




Prep Shop



Prep Shop

Cutting Tables

1 – Laser Table - Cutting and Etching

1 - Omax 10' x 26' Water jet Dual Bridge Cutting Table

1 - 10' x 50' High Def Hypertherm HPR400 Plasma Table with True Hole Technology

1 - 8' x 24' 5 Axles High Def Hypertherm HPR400 Plasma Table with True Hole Technology and Bevel Capability (With structural steel Cutting Tank)



Bending Capabilities

 1 – Accupress 24' 750 Ton Brake

1 – Accupress 10' 175 ton brake

2 – 5ton Overhead Cranes


Welding and Mounting




Welding Shop /Mounting



Welding and Mounting




Welding Shop /Mounting



Welding  / Mounting

1 – Fanuc/Lincoln Robotic Welding/Plasma Cell

 40 – Welding Stations

 2 – 10ton Overhead Cranes

 4 – 5ton Overhead Cranes

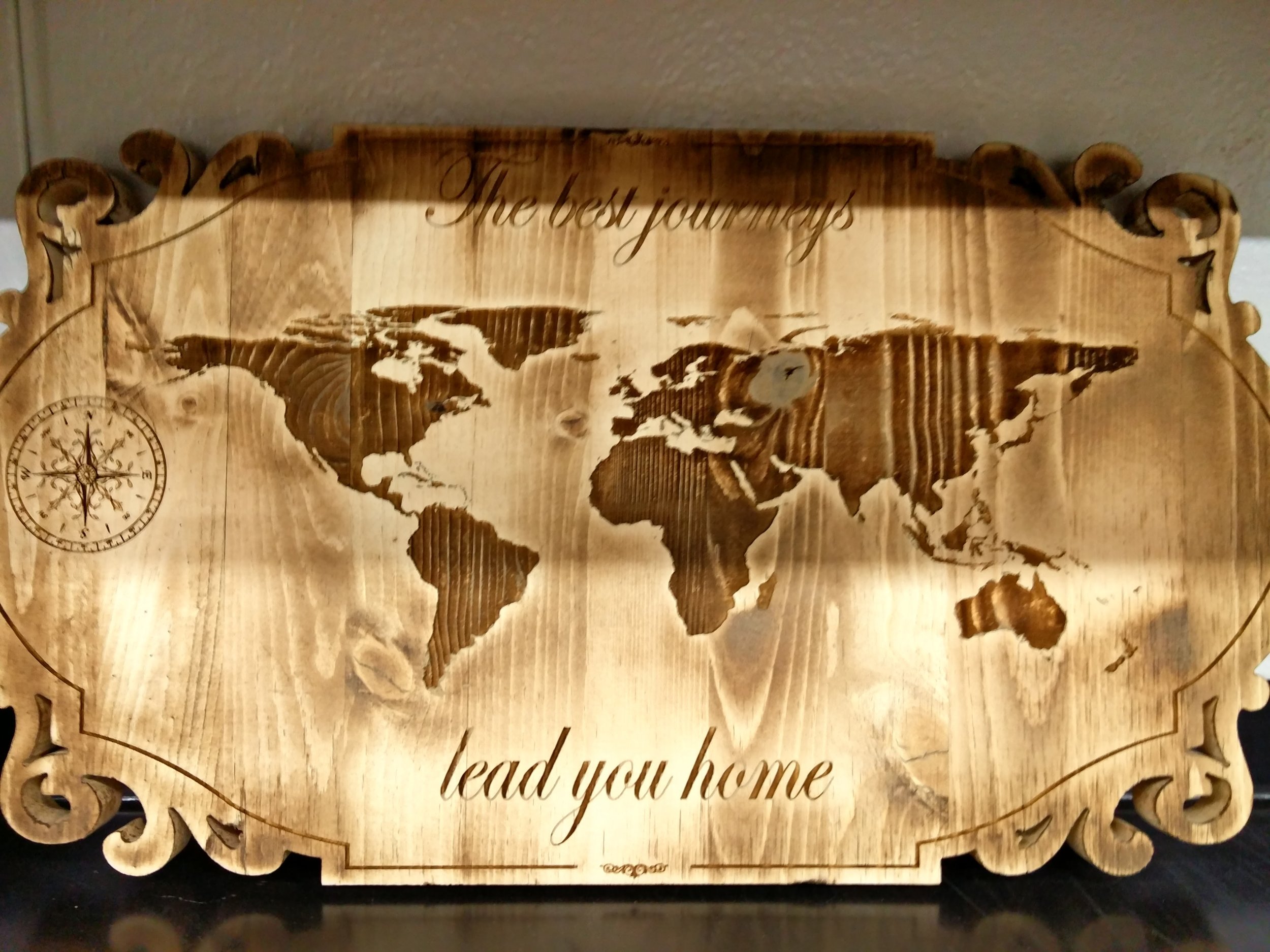

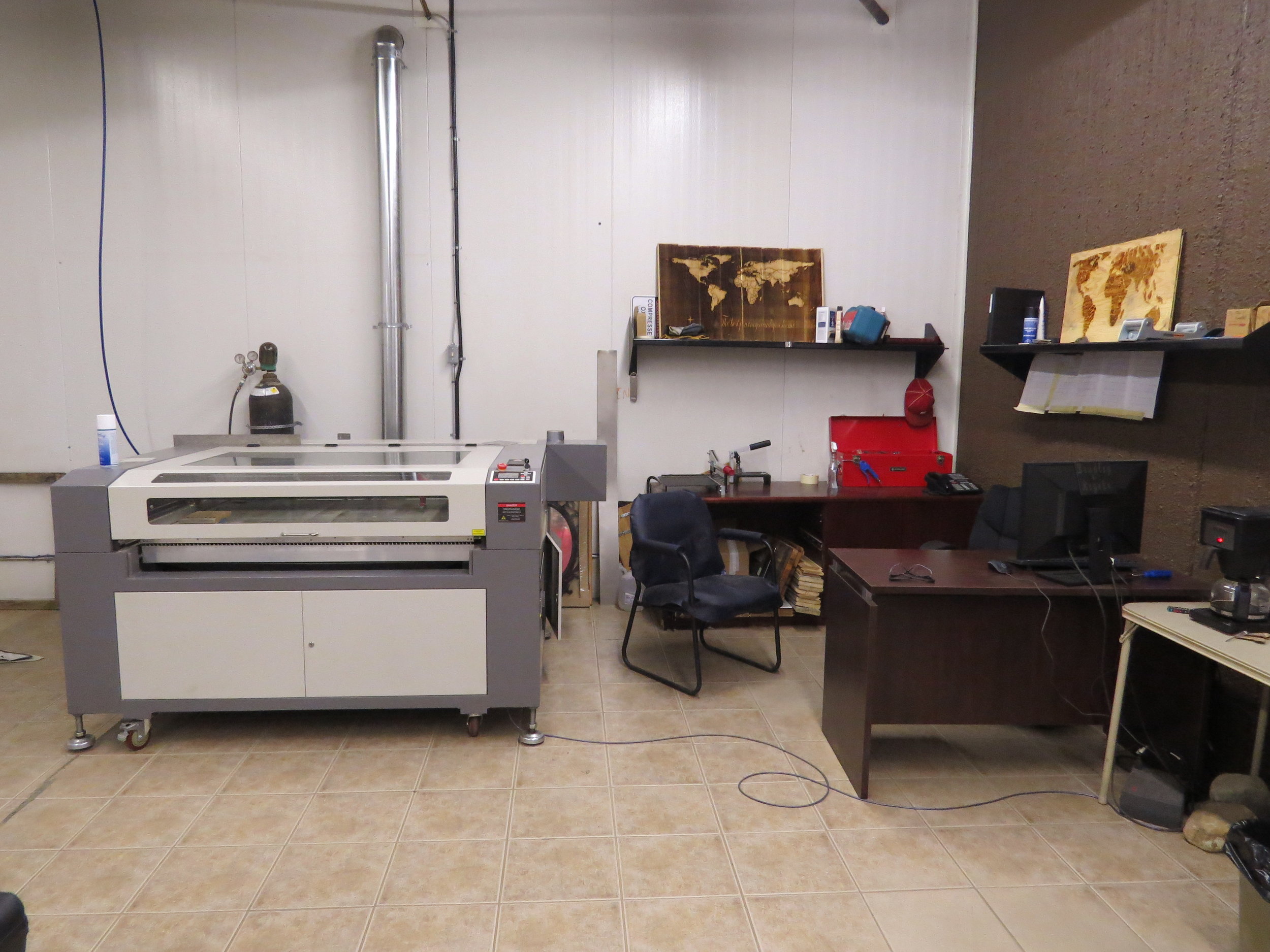

Laser Engraving




Laser Engraving



Laser Engraving




Laser Engraving



Laser Engraving

1 – HP 3650 Boss Laser


Powder Coating and Wet Paint




Powder Coating & Wet Paint



Powder Coating and Wet Paint




Powder Coating & Wet Paint



Powder Coating / Wet Paint

Wet Paint and Powder Coating Facilities

 23,000 Square Foot Facility

1 - 10' x 12' x 56' 4 Million BTU Powder Coating Oven

2 - 60' Spray Booths

1 - 60' Blast Booth

 1 – 16’ x 14’ x 60’ Wet Paint Booth

 4 – 5 ton Overhead Cranes


Decal Packaging




Decal Packaging



Decal Packaging




Decal Packaging
