Oilfield


SCROLL DOWN

Oilfield




P1D E36 First Mast Raise 006.jpg

Period 1 Double


Period 1 Double Service Rig

Period 1 Double


Period 1 Double Service Rig

Period 1 Double Mast Service Rig

Basic Information:

  • Capacity: 200,000lbs
  • Height: 105'

Quality Product Specification Requirements:

  • Design Temperature: -35°C
  • Carrier Type: Tandem Steer/Tri Drive
  • Engine Type: Cummins QSL 9
  • Transmission: Allison 4700 OFS
  • Drop Box: Namco

Substructure Design Criteria:

  • Maximum rated static hook load, KN (short tons): 200,000 lbf on 6 lines (890 KN)
  • Maximum rated pipe setback capacity, KN (short tons): 91,000 lbs. 2,100m of 4-1/2" at 12.75 lb/ft.
  • Maximum rated design wind velocity at reference elevation of 10M (33') above mean sea level or ground for 3-second gust duration with free stand package, “with rated capacity of pipe racked” , M/S (knots): 70mph (60 knots) 31m/s
  • Maximum rated design wind velocity at reference elevation of 10M (33') above mean sea level or ground for 3-second gust duration with free stand package, “without rated capacity of pipe racked” , M/S (knots): 70mph (60 knots) 31m/s
  • Elevation of ground used in design: 10m
  • Elevation of ground used in design for wind loading, m (ft): 33'.
  • Max rated rod capacity, KN (short tons): 28,350 lbf 3,000m of 1'' @ 2.89lb/ft.

Mast:

  • Type: Single, Telescoping Double, Telescoping Triple, Cantilever Triple
  • Guying: Free Stand, guying required (internally), mast set-up distance 6'.

Service Rig:

  • Racking Platform: Pipe diameter (in) 4.5"
  • Rod Board: Rod diameter (in) 1"

Crown:

  • Sheaves:
    • Quantity: 5
    • Sheave diameter: 4 @ 24", 1 @ 22"
    • Material: (optional) Nylatron

Wire Rope Size:

  • Sand line: 1/2" swaged
  • Drill line: 1"
  • Supplied by: Shaw
  • Standard: API 9A

Traveling Equipment:

  • Block Size: 100 ton
  • Make: Mckissick
  • Weight: 2,200
  • Standard: API 8A

Winches:

  • Quantity: 2
  • Location: Sub-frame
  • Man Rider: Y
  • Make/model: Braden BG6B

Wind Walls:

  • Details: Tubing board, rod basket, and mast selection at tubing board. 8 sections of 2' alum frame

Hydraulic Systems:

  • Primary: Rig Hydraulics
  • Secondary

Drawworks:

  • Model #: Fast 450
  • Supplier: Fast industries
  • Main drum braking: 42'' x 10'' Band
  • Sandline braking: Kobelt-air actuated
  • Maindrum backup: Kobelt

Egress System:

  • Ground Anchor Type: Drive on
  • Fall Arrest Requirements:
    • Racking Board: Secondary SALA
    • Crown: Primary SALA


Truck Mounted Single


Truck Mounted Single Service Rig

Truck Mounted Single


Truck Mounted Single Service Rig

Truck Mounted Single Mast Service Rig

Basic Information

Model: TMS69-120

API 4F: 3rd Edition - Yes**

Period One Legal - Yes**

Rig Weights (Fully Dressed) Front: 16,800 kg

 Rear: 24,000 kg**

Capacity: 120,000 lbs (53,376 daN)

Height: 69' (21 m)

Minimum Design Temperature: -20°C


Carrier

Axle Configuration: Tandem Steer/Tridem Drive

Tires Steer: 445R22.5 Drive: 12R22.5

Chassis International Paystar 5900i (other trucks optional)

Wheelbase: 378in (Front steer-to-centre drive)

Steer Axle Spread: 72"

Transfer Case: Fabco PTO-180-23


Mast

Model: 69-120 Stiff-Single

Mast Height: 69' (21 m)

API Capacity: 120,000 lbs (53,376 daN) on 4 lines

Free-standing or Guyed (with free-stand equipped)

Maximum rated design wind velocity 85 mph without setback. 70 mph with setback

Drill Line Size: 7/8" or 1"

Racking Board Height: 27' (8.23 m)

Rod Basket Height: 54-3/4' (16.69 m)

Racking Board Capacity: 18,700 daN (21 short tons)

Rod Basket Capacity: 8,400 daN (9.45 tons) - Max 1" rods

Crown Sheaves 3 of 24" steel sheaves and 1 of 22" steel sheave

Well Spacing: 5' (1.52 m)

Fall Arrest at Crown - Yes

Fall Arrest above Rod Board - Yes

Central Grease - Yes

Traveling Block: 75 ton


Drawworks

Model: FAST450 42x10 Band, FAST450DB (2x48in Disc), FAST450LW

Drill Line Size: 7/8" or 1"

Sand line Capacity of 9/16" 10,000' (3048 m) or 5,000' (1524 m) on FAST450LW

Sand line Capacity of 1/2" Swaged 12,000' (3657 m)


Features

Free-stand Turnbuckles - Aluminum

Winches - 2 on Rig Deck

Man Rider Winch - Optional

Rod Accelerator - Optional

Tong Swivel Mount - Optional

BOP Slide (Rear Mount) - Optional

Accumulator Class 2 with Class 3 accommodations



** dependent on rig configuration and equipment


Truck Mounted Double


Truck Mounted  Double Service Rig

Truck Mounted Double


Truck Mounted  Double Service Rig

Truck Mounted Double Mast Service Rig

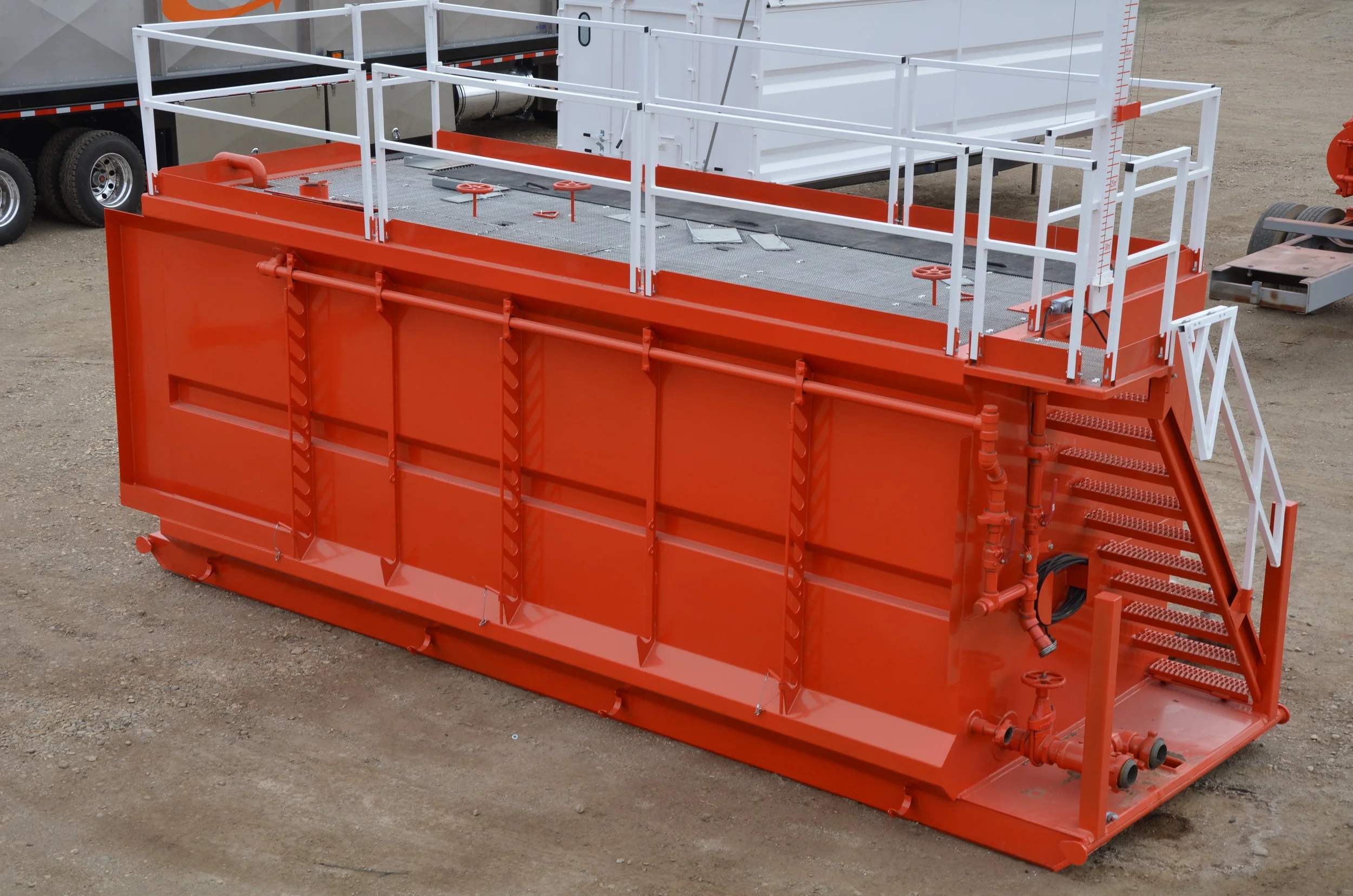

Mud Tanks


Mud Tank

Mud Tanks


Mud Tank

Mud Tank

Fluid Capacity: 8384 gallon (32 m3)
Travel Dimensions: 271” L x 106” H x 103” W

Material Options

  • Frame Material Requirements: QT-100 high strength steel frame (skids reinforced)
  • Decking Type / Material: Fiber grating upper deck

Piping Requirements

  • Suction Line: 4” line, 4” gate valve on suction (Operating Pressure 100 psi)
  • Steam Line: 2"
  • Inlet : 2" (Operating Pressure 5000 psi)
  • Line Pipe: 2" (Operating Pressure 6000 psi - Test certs to be provided; Length Required)
  • 18 lengths x 20'
  • 2 lengths x 10'
  • 2 lengths x 6'
  • 2 lengths x 4'

Valve Type (gate or butterfly): Butterfly valves, 4” valves for each chamber, equalizer valve between sections and 4” internal valves for each chamber.

Degasser

  • Box style degasser
  • Inlet feed diameter: 2"

Options

  • Remote monitoring: Available
  • Handrails (Height and style): Collapsible
  • Shake tray: Yes, multi compartment sand trough
  • Tank Gage type: Float gage
  • Lighting requirments 4' light top of gage board
  • Davit arm (Make / Model): North safety
  • Safety cables
  • Pipe Racking Requirements: Racking for 240” lengths

Copy of IMG_0313.JPG

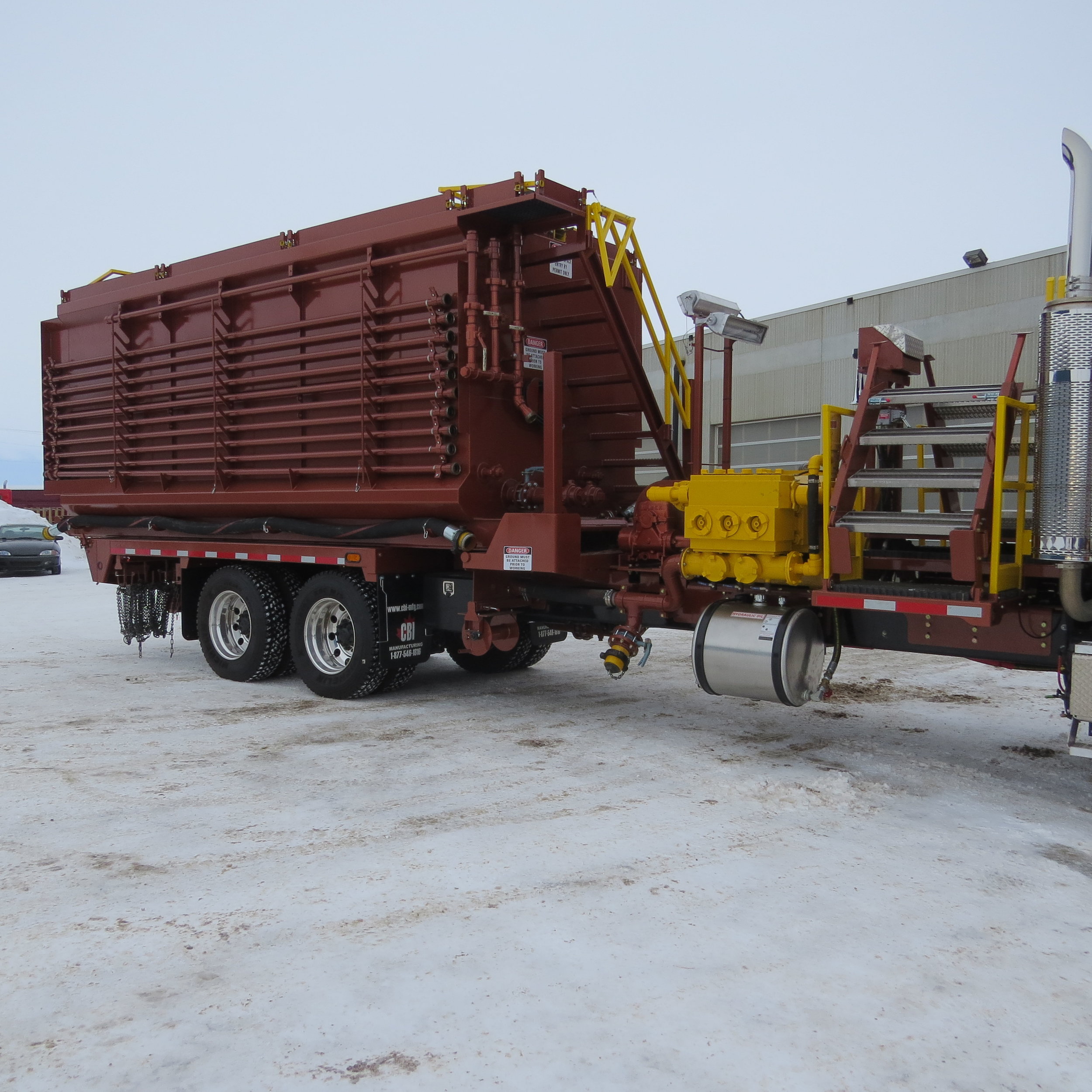

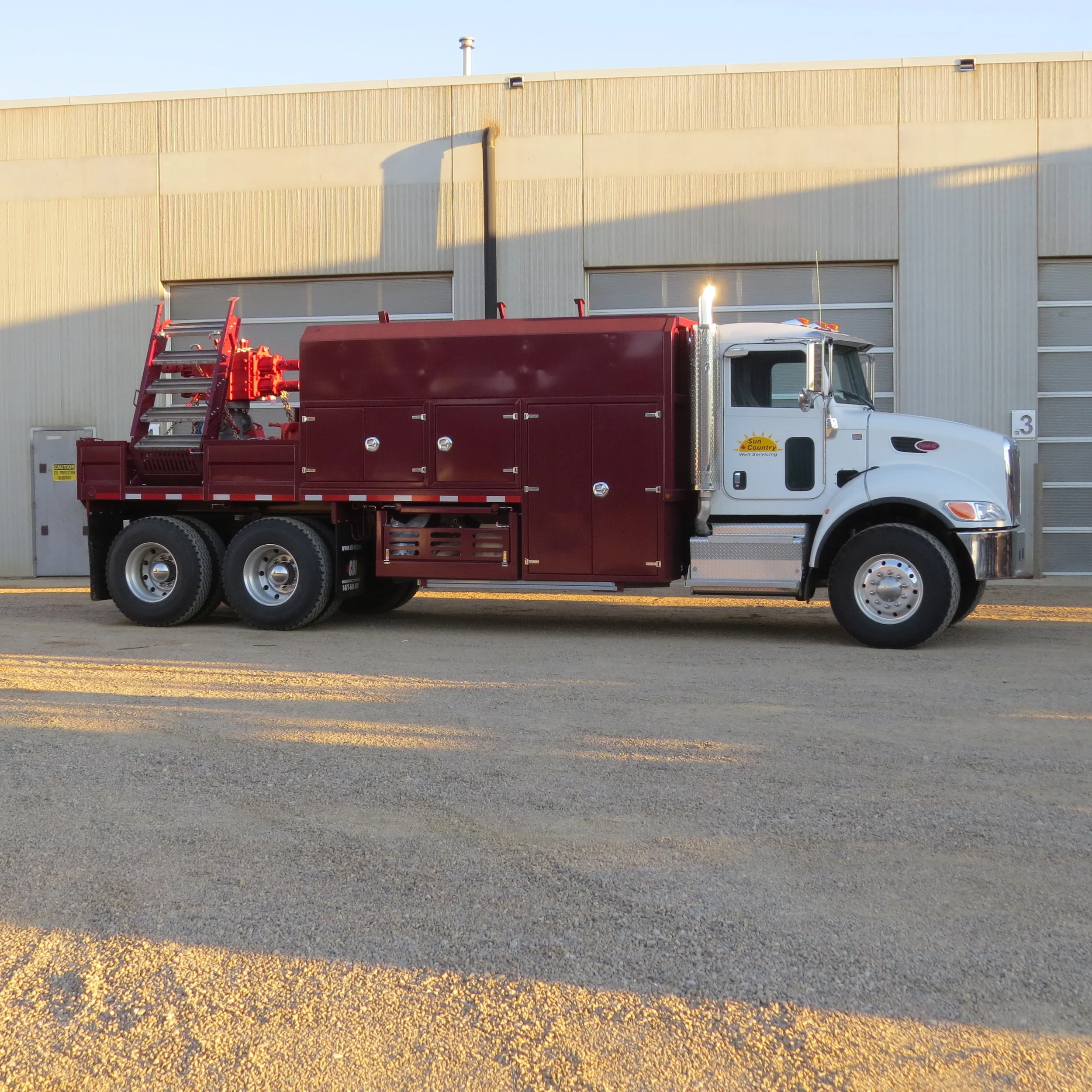

Pump Truck


Pump Truck

Pump Truck


Pump Truck

Pump Truck

Truck Specifications:

  • Axles Numbers: Tandem Drive Single Steer
  • Deck Size: 102'' W x 166.75'' L Tank supporting deck
  • Live Roll Size: 98.4'' Live Roll with Kicker

Pump Specifications:

  • Make: SJ
  • Model: Triplex Plunger Pump
  • Working pressure/flow: 11 lbs./min max
  • Make: Bowie
  • Model: 4300EX charge pump

Handrails and Stairs:

  • Hand Rail Style: Collapsible
  • Stair details: Folding stair for access to working deck

Winch:

  • Make: Tulsa
  • Model: H34 winch

Power Takeoff:

  • Make: Chelsea
  • Model: 859XGFJP-85XK

Piping Requirements:

  • Piping: Pump Line
  • Diameter: 2"
  • Operating Pressure: 5000 psi


Oilfield Trailers


Oilfield Trailers

Oilfield Trailers


Oilfield Trailers

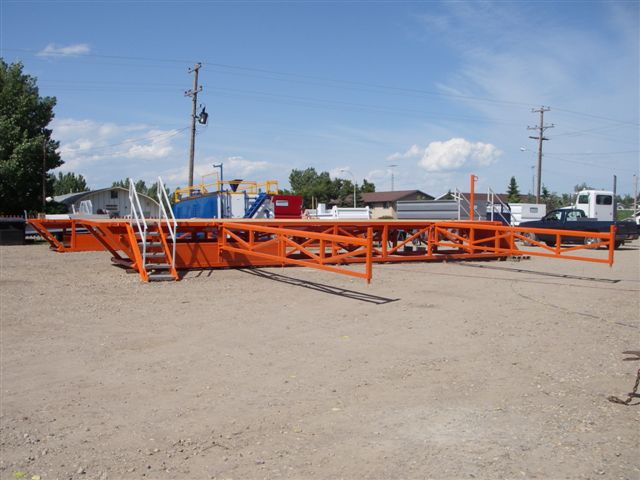

Catwalk


Catwalk

Catwalk


Catwalk

Catwalk

Dimensions

  • Length: 44'
  • Width: 8' in transport mode, 50' setup
  • Deck Height: 4'

Body

  • Formed QT-100 frame rails
  • Tri-axle, single wheel configuration
  • 3 stairs with storage
  • Storage box for planks
  • Front jack and four jacks on the body
  • Powder coated frame

Arms

  • Engineered and certified to lift 50,000 lbs. per side
  • Quick adjust system using mechanical trailer jacks

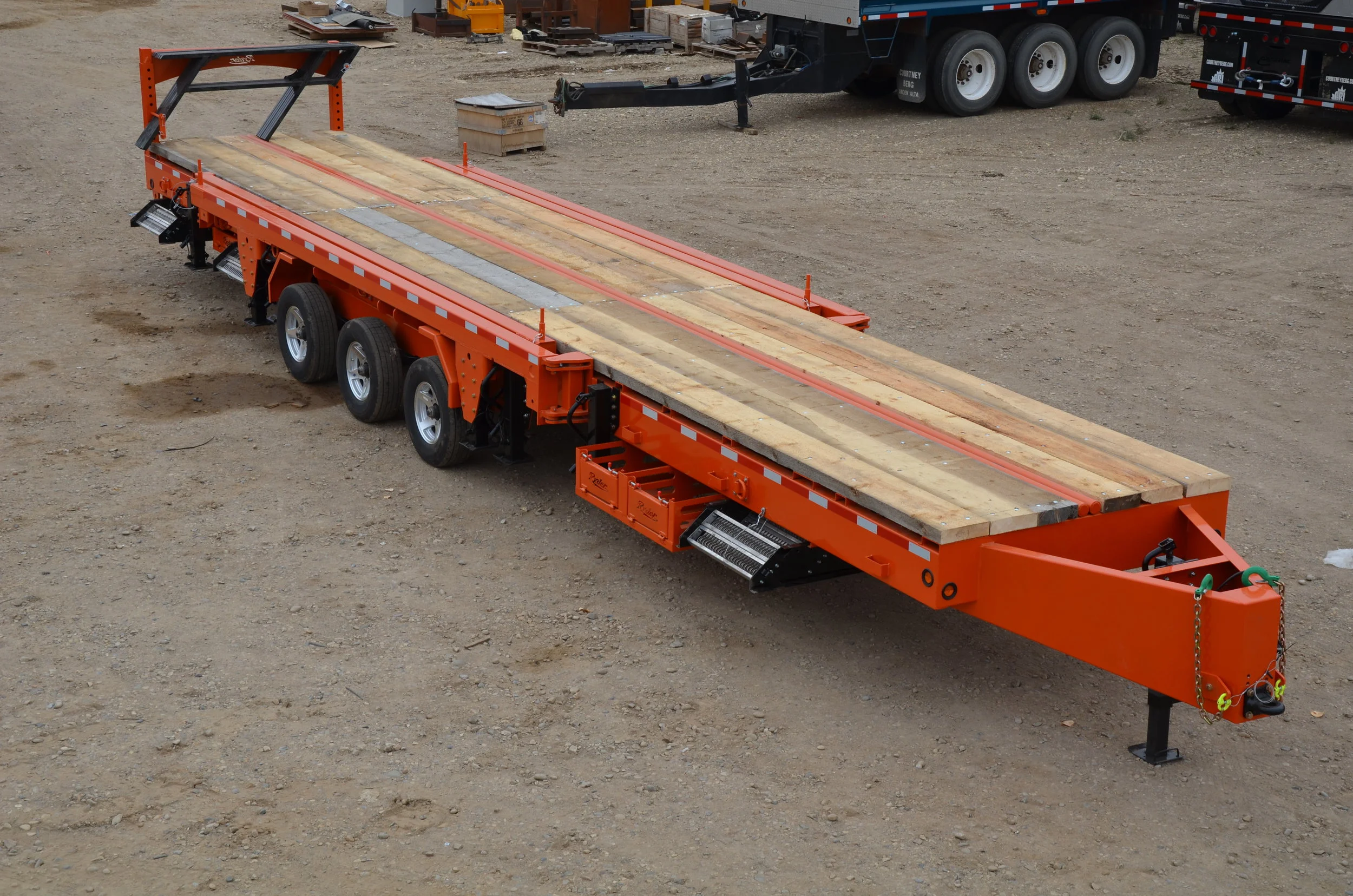

Mobile Catwalk


Mobile

Catwalk

Mobile Catwalk


Mobile

Catwalk

Mobile Catwalk

Dimensions

  • Length: 44'
  • Width: 8' in transport mode, 50' setup
  • Deck Height: 4'

Body

  • Formed QT-100 frame rails
  • Tri-axle, single wheel configuration
  • 3 stairs with storage
  • Storage box for planks
  • Front jack and four jacks on the body
  • Powder coated frame

Arms

  • Engineered and certified to lift 50,000 lbs. per side
  • Quick adjust system using mechanical trailer jacks


Dog House


Dog House

Dog House


Dog House

Doghouse

Dog House information

Hand Rails Stairs and Walls

  • Standard Hand rails
  • Fold up deck and stairs

Tool Box Details

  • Two dog house integrated tool boxes
  • Two rear under body boxes

Options

  • Slid out chain racks
  • As per engineer specification
  • Truck mounting provided by CBI
  • Crane Make- maxi Lift Electric/ Hydraulic 300 3E

Dog House spec list

  • Integrated desk
  • Refrigerator
  • Benches with storage
  • 110 V AC electric lighting
  • Lockers
  • Microwave
  • Sliding windows
  • Air Conditioning
  • Electric heater
  • Filing Cabinet
  • Wall cabinet
  • 3x110 V AC power outlets
  • 1x220 V AC power outlets

Tool Room Spec List

  • Generator set
  • Shelving
  • Electric panel
  • Bolt bin
  • Work bench
  • 110 V AC electric lighting
  • Sliding windows
  • Toilet room


Equipment Trailer


Equipment

Truck

Equipment Trailer


Equipment

Truck

Equipment Truck

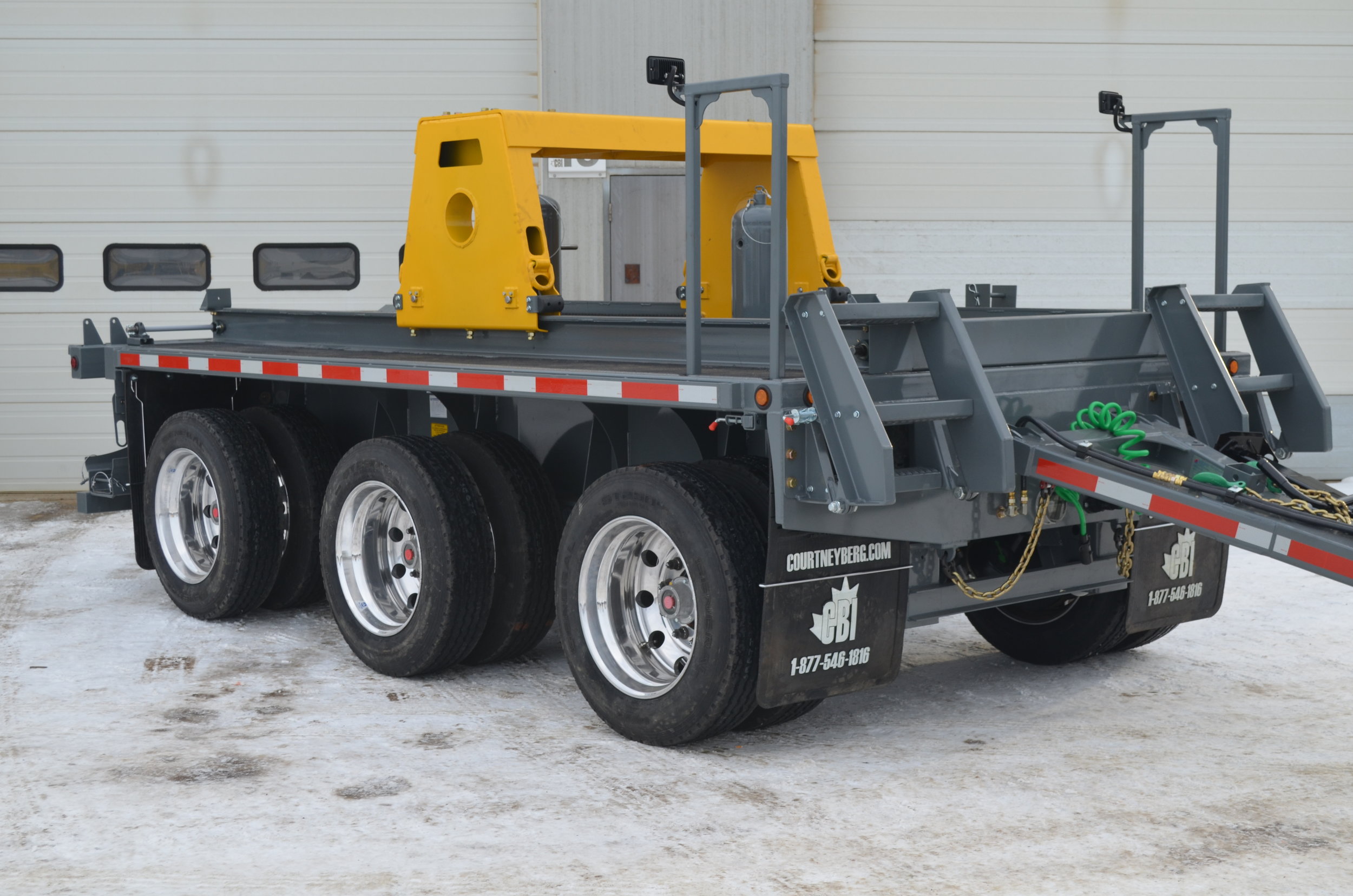

Crane Dolly


Crane Dolly



Crane Dolly


Crane Dolly



Crane Dolly

Crane Dolly Features

Length: 22'

Width: 8' 6"

Frame: QT100 High Tensile Frame

Suspension: Ridewell 2602206

Axles: 77-1/2" track all dressed with bearings, seals, hubs and drums

Hubs and Drums: 10 stud uni-mount with cast hubs and drums

Brakes: 16-1/2" x 7"

Wheels: 10 hole uni-mount, 22.5 x 8.25 aluminum, six machined, six polished

Tires: 255/70R x 22.5 radials

Safety Chains: 3/8" with sling hooks and safety latches

Hitch: Adjustable length hitch and removable jack

Rolling A-Frame: QT100 Steel with tapered flange rollers

Fenders: Bolt on 3/16" Aluminum

Steps: Aluminum with handrails

Lifting Lugs: Rated 4 point lifting lugs

ABS: 4S/2M tri-axle ABS kit

Air System: Regulation MVSS with dump valves and gauges

Electrical: Native 24-volt system. LED lights

Height Control: Height control valves on front and rear axles

Paint: Sandblasted and powder coated grove grey and black

1 009.jpg

Drawworks


Drawworks



Drawworks


Drawworks



Drawworks

Drawworks

  • Model: FAST450 (Brand)/Fast450DB (Disc)
  • Max Input HP Rating: 450 HP/336 kW
  • Single Line Pull: 41,500 lb/18,400 daN
  • Max Hook with 4-lines: 150,000 lb/66,720 daN
  • Max Hook with 6-lines: 217,000 lb/96,500 daN

Main Drum

  • Dia. X Width: 18" x 36"
  • Wire Line Size: 1" or 7/8"
  • Drum Clutch: PO324
  • Drive Chain: Triple 100
  • Brake System: Dual 48" (Disc)/ 42 x 10 (Band)
  • Brake Cooling: Air
  • Auxiliary Brake (Optional): 40" Disc

Sandline Drum

  • Dia. X Width: 12-3/4" x 36"
  • Drive System: Polychain or Triple 100
  • Brake System: Single 40" Disc
  • Clutch PO214 (Polychain)/PO314 (steel Chain)
  • Capacity: 12,000'
  • Capacity 9/16" Wire Rope: 10,000'

Weight and Dimension

  • Fast 450 (Band Brakes w/Triple 100 Drive Sandline)-Complete: 14,900 lb
  • Fast450DB (Disc Brakes w/Polychain Drive Sandline)-Complete: 15,400 lb
  • LxWxH: 127-3/4" x 105" x 60-3/4"

Standard Features

  • Main Drum chain tensioners
  • Sandline polychain tensioner
  • Cable grooving machined in main drum barrel
  • Dual-Output, 3:2 reducing Right-Angle gearbox
  • Central greasing
